| Part Number | TPS61096DSST | TPS61096ADSST | TPS61096DSSR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 1.8V | 1.8V | 1.8V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 4.5V | 4.5V | 4.5V |
| Voltage - Output (Max) | 28V | 28V | 28V |
| Current - Output | 350mA (Switch) | 350mA (Switch) | 350mA (Switch) |
| Frequency - Switching | - | - | - |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

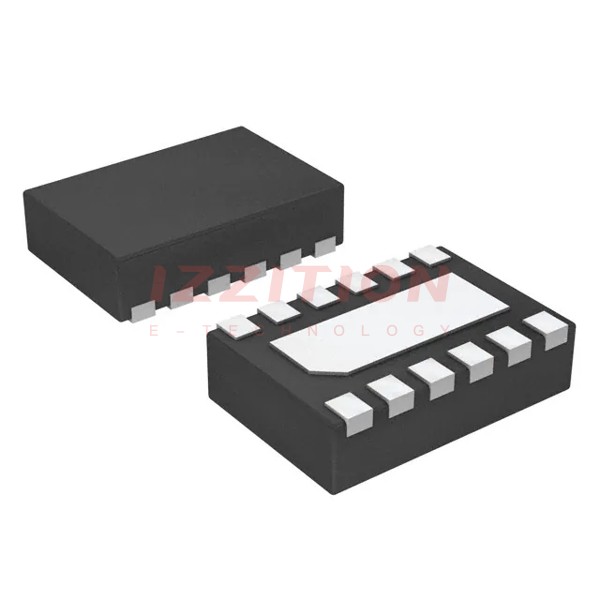

| Package / Case | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WSON (3x2) | 12-WSON (3x2) | 12-WSON (3x2) |
