Please send RFQ , we will respond immediately.

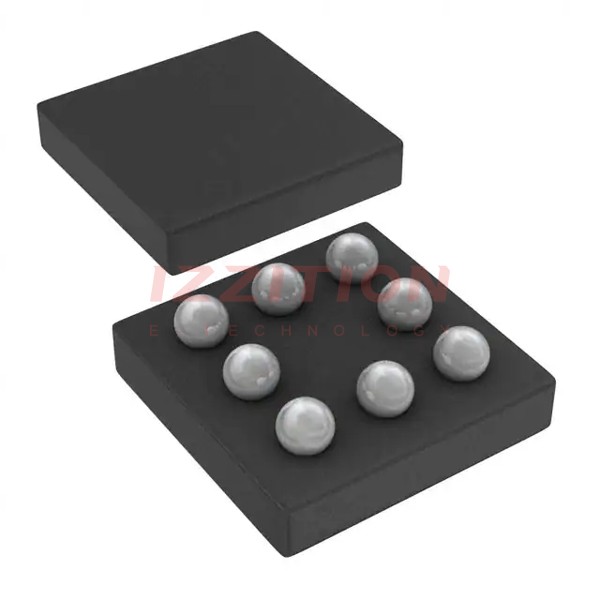

| Part Number | TPS61062YZFR | TPS61062YZFT | TPS61060YZFR | TPS61061YZFR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 6V | 6V | 6V | 6V |
| Voltage - Output | 23.5V | 23.5V | 14.5V | 18.5V |
| Current - Output / Channel | 400mA (Switch) | 400mA (Switch) | 400mA (Switch) | 400mA (Switch) |
| Frequency | 1MHz | 1MHz | 1MHz | 1MHz |
| Dimming | PWM | PWM | PWM | PWM |
| Applications | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA | 8-DSBGA | 8-DSBGA | 8-DSBGA |
