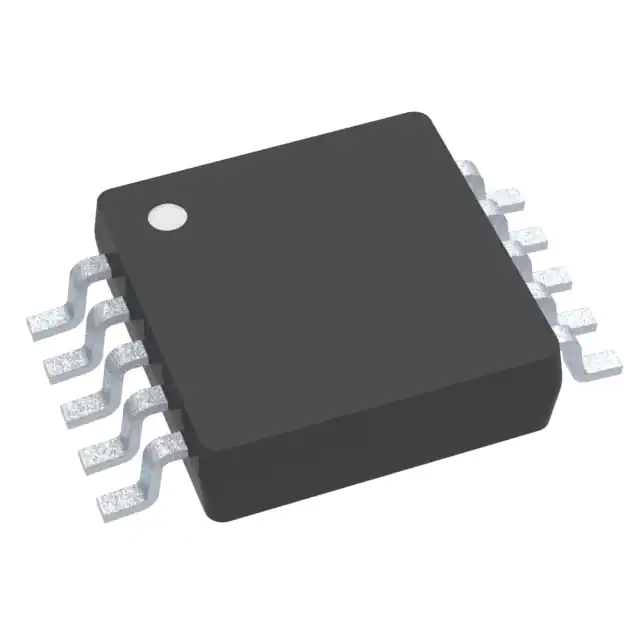

| Part Number | TPS60503DGS | TPS60503DGSR | TPS60203DGS | TPS60303DGS | TPS60500DGS | TPS60501DGS | TPS60502DGS |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Active | Obsolete | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Up | Ratiometric, Step-Up | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Charge Pump | Charge Pump | Charge Pump | Charge Pump | Charge Pump | Charge Pump | Charge Pump |
| Output Type | Fixed | Fixed | Fixed | Fixed | Adjustable | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 2 | 1 | 1 | 1 |
| Voltage - Input (Min) | 1.8V | 1.8V | 1.6V | 0.9V | 1.8V | 1.8V | 1.8V |
| Voltage - Input (Max) | 6.5V | 6.5V | 3.6V | 1.8V | 6.5V | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.5V | 3.3V | 2Vin, 3V | 0.8V | 3.3V | 1.8V |
| Voltage - Output (Max) | - | - | - | - | 3.3V | - | - |
| Current - Output | 250mA | 250mA | 50mA | 40mA, 20mA | 250mA | 250mA | 250mA |
| Frequency - Switching | 800kHz | 800kHz | 300kHz | 700kHz | 800kHz | 800kHz | 800kHz |
| Synchronous Rectifier | No | No | No | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP | 10-VSSOP | 10-VSSOP | 10-VSSOP | 10-VSSOP | 10-VSSOP | 10-VSSOP |
