| Part Number | TPS566231PRQFR | TPS566231RQFR | TPS566238PRQFR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 3V | 3V |
| Voltage - Input (Max) | 18V | 18V | 18V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 7V | 7V | 7V |
| Current - Output | 6A | 6A | 6A |
| Frequency - Switching | 600kHz | 600kHz | 600kHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

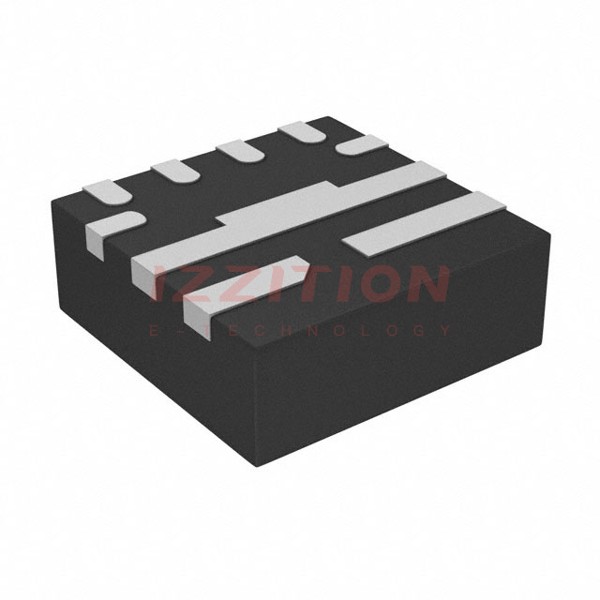

| Package / Case | 9-VFQFN | 9-VFQFN | 9-VFQFN |
| Supplier Device Package | 9-VQFN-HR (1.5x2) | 9-VQFN-HR (1.5x2) | 9-VQFN-HR (1.5x2) |
