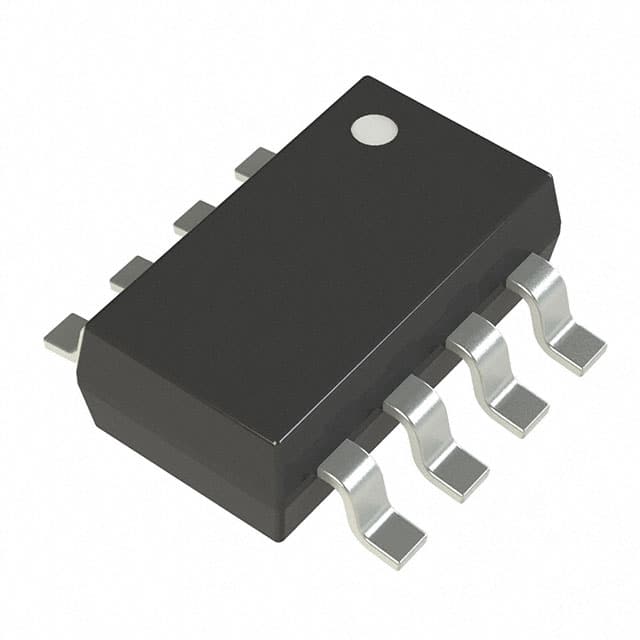

| Part Number | TPS563210ADDFR | TPS563219ADDFR | TPS563210ADDFT | TPS563210DDFR | TPS562210ADDFR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Not For New Designs | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 17V | 17V | 17V | 17V | 17V |
| Voltage - Output (Min/Fixed) | 0.76V | 0.76V | 0.76V | 0.76V | 0.76V |
| Voltage - Output (Max) | 7V | 7V | 7V | 7V | 7V |
| Current - Output | 3A | 3A | 3A | 3A | 2A |
| Frequency - Switching | 650kHz | 650kHz | 650kHz | 650kHz | 650kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 |
| Supplier Device Package | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 |
