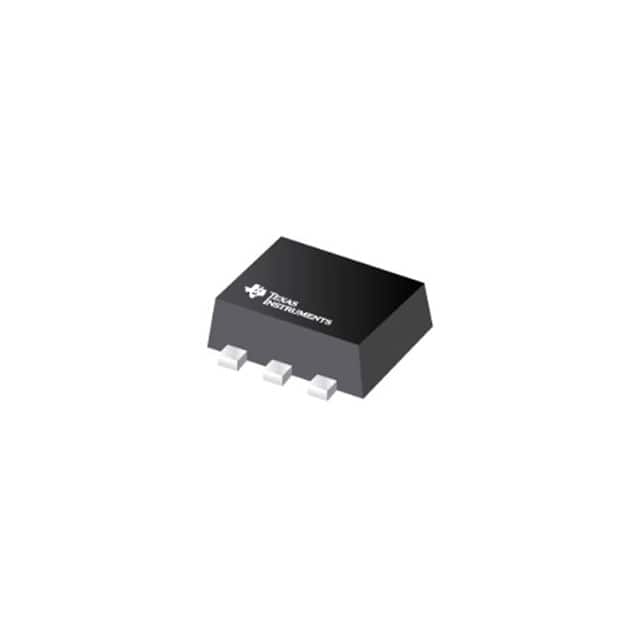

| Part Number | TPS563207SDRLR | TPS562207SDRLR | TPS563202SDRLR | TPS563207DRLR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.3V | 4.3V | 4.3V | 4.3V |
| Voltage - Input (Max) | 17V | 17V | 17V | 17V |
| Voltage - Output (Min/Fixed) | 0.806V | 0.804V | 0.806V | 0.806V |
| Voltage - Output (Max) | 7V | 7V | 7V | 7V |
| Current - Output | 3A | 2A | 3A | 3A |
| Frequency - Switching | 580kHz | 580kHz | 580kHz | 580kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 | SOT-563 | SOT-563 | SOT-563 |
