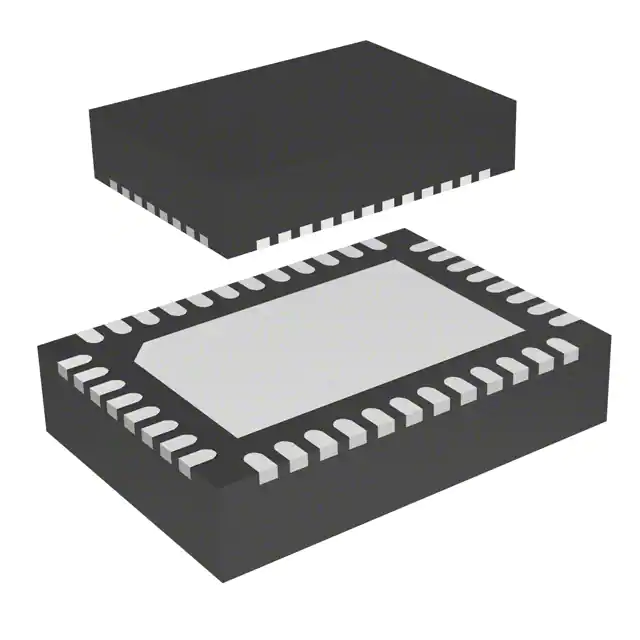

| Part Number | TPS546A24ARVFR | TPS546B24ARVFR | TPS546D24ARVFR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.95V | 2.95V | 2.95V |
| Voltage - Input (Max) | 18V | 18V | 16V |
| Voltage - Output (Min/Fixed) | 0.5V | 0.6V | 0.6V |
| Voltage - Output (Max) | 5.5V | 5.5V | 5.5V |
| Current - Output | 10A | 20A | 40A |
| Frequency - Switching | 255kHz ~ 1.5MHz | 225kHz ~ 1.5MHz | 225kHz ~ 1.5MHz |
| Synchronous Rectifier | Yes | No | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 40-LFQFN Exposed Pad | 40-LFQFN Exposed Pad | 40-PowerLFQFN |
| Supplier Device Package | 40-LQFN-CLIP (7x5) | 40-LQFN-CLIP (7x5) | 40-LQFN-CLIP (7x5) |
