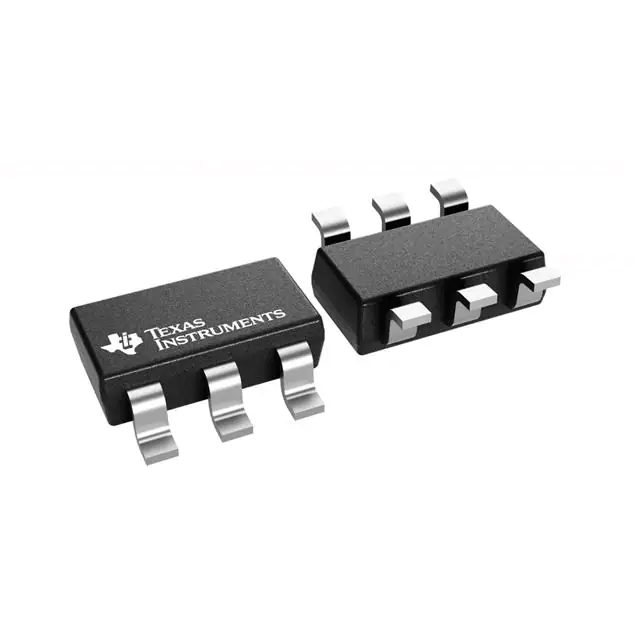

| Part Number | TPS54302DDCR | TPS54308DDCR | TPS54302DDCT | TPS54202DDCR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 28V | 28V | 28V | 28V |
| Voltage - Output (Min/Fixed) | 0.596V | 1V | 0.596V | 0.596V |
| Voltage - Output (Max) | 28V | 26V | 28V | 28V |
| Current - Output | 3A | 3A | 3A | 2A |
| Frequency - Switching | 400kHz | 350kHz | 400kHz | 500kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SOT-23-THIN | SOT-23-THIN | SOT-23-THIN | SOT-23-THIN |
