| Part Number | TPS53315RGFR | TPS53315RGFT | TPS51315RGFR | TPS53314RGFR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 3V | 3V | 3V |
| Voltage - Input (Max) | 15V | 15V | 14V | 15V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.75V | 0.6V |
| Voltage - Output (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Current - Output | 12A | 12A | 10A | 6A |
| Frequency - Switching | 250kHz ~ 1MHz | 250kHz ~ 1MHz | 100kHz ~ 1MHz | 250kHz ~ 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

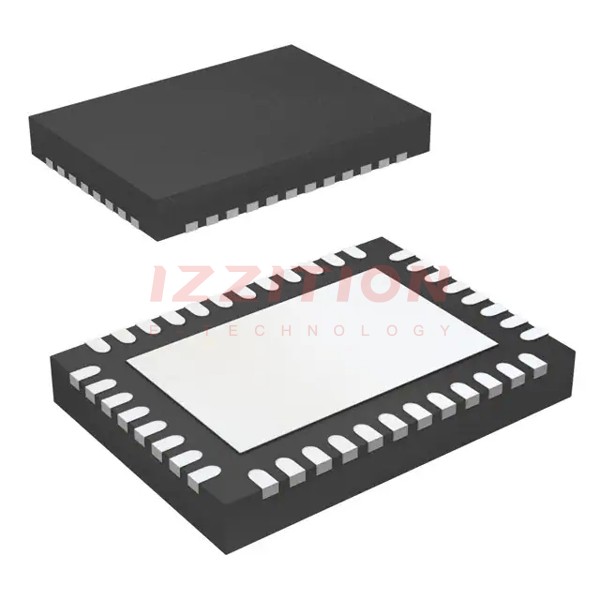

| Package / Case | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (7x5) | 40-VQFN (7x5) | 40-VQFN (7x5) | 40-VQFN (7x5) |
