Please send RFQ , we will respond immediately.

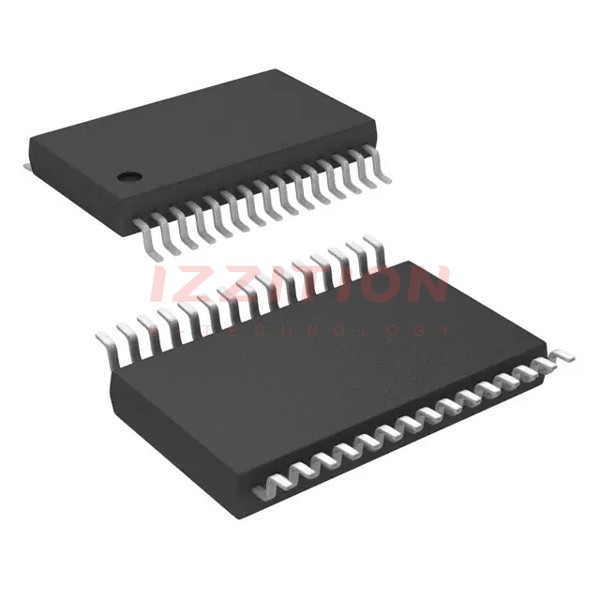

| Part Number | TPS5120DBTR | TPS5124DBTR | TPS5120DBT |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Number of Outputs | 2 | 2 | 2 |
| Output Phases | 2 | 2 | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V | 4.5V ~ 15V | 4.5V ~ 28V |
| Frequency - Switching | 300kHz | 300kHz | 300kHz |
| Duty Cycle (Max) | 83% | 80% | 83% |
| Synchronous Rectifier | Yes | Yes | Yes |
| Clock Sync | No | No | No |
| Serial Interfaces | - | - | - |
| Control Features | Enable, Power Good, Soft Start | Enable, Power Good | Enable, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 30-TFSOP (0.173", 4.40mm Width) | 30-TFSOP (0.173", 4.40mm Width) | 30-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 30-TSSOP | 30-TSSOP | 30-TSSOP |
