| Part Number | TPS40074RHLT | TPS40075RHLT | TPS40074RHLR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Not For New Designs |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V |
| Frequency - Switching | Up to 1MHz | Up to 1MHz | Up to 1MHz |
| Duty Cycle (Max) | 95% | 95% | 95% |
| Synchronous Rectifier | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start | Current Limit, Frequency Control, Power Good, Soft Start | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

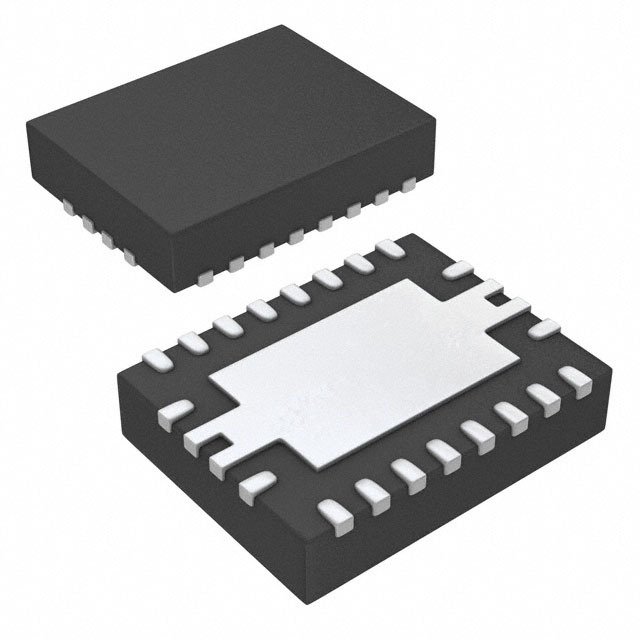

| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) | 20-VQFN (3.5x4.5) | 20-VQFN (3.5x4.5) |
