| Part Number | TPS40070PWPRG4 | TPS40071PWPRG4 | TPS40077PWPRG4 | TPS40020PWPRG4 | TPS40050PWPRG4 | TPS40060PWPRG4 | TPS40070PWPG4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 2.25V ~ 5.5V | 8V ~ 40V | 10V ~ 55V | 4.5V ~ 28V |
| Frequency - Switching | Up to 1MHz | Up to 1MHz | Up to 1MHz | 100kHz ~ 1MHz | 500kHz | Up to 1MHz | Up to 1MHz |
| Duty Cycle (Max) | 93% | 93% | 93% | 95% | 94% | 98% | 93% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | No | No | No | Yes | Yes | Yes | No |
| Serial Interfaces | - | - | - | - | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start | Current Limit, Enable, Frequency Control, Power Good, Soft Start | Current Limit, Frequency Control, Power Good, Soft Start | Current Limit, Enable, Frequency Control, Power Good, Soft Start | Current Limit, Enable, Frequency Control, Soft Start | Current Limit, Enable, Frequency Control, Soft Start | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

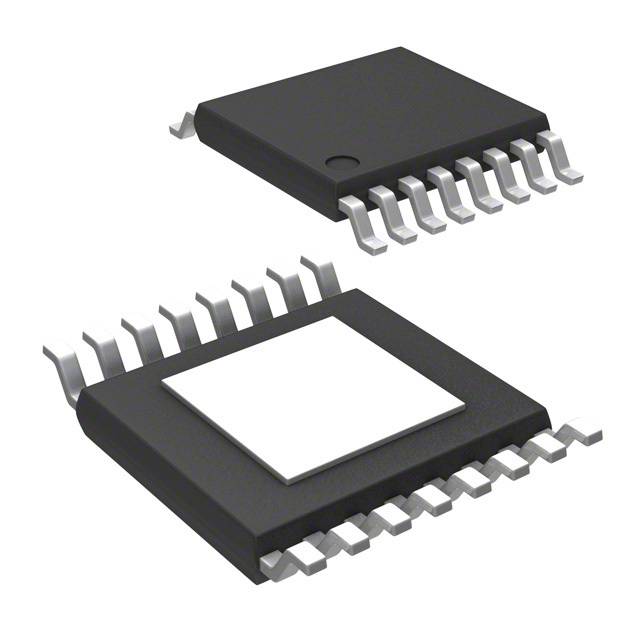

| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP |
