| Part Number | TPS40009DGQG4 | TPS40009DGQRG4 | TPS40000DGQG4 | TPS40002DGQG4 | TPS40003DGQG4 | TPS40005DGQG4 | TPS40007DGQG4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 5.5V | 2.25V ~ 5.5V | 2.25V ~ 5.5V | 2.25V ~ 5.5V | 2.25V ~ 5.5V | 2.25V ~ 5.5V | 2.25V ~ 5.5V |
| Frequency - Switching | 600kHz | 600kHz | 300kHz | 600kHz | 600kHz | 600kHz | 300kHz |
| Duty Cycle (Max) | 93% | 93% | 94% | 93% | 93% | 93% | 94% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | No | No | No | No | No | No | No |
| Serial Interfaces | - | - | - | - | - | - | - |
| Control Features | Current Limit, Enable, Soft Start | Current Limit, Enable, Soft Start | Current Limit, Enable, Soft Start | Current Limit, Enable, Soft Start | Current Limit, Enable, Soft Start | Current Limit, Enable, Soft Start | Current Limit, Enable, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

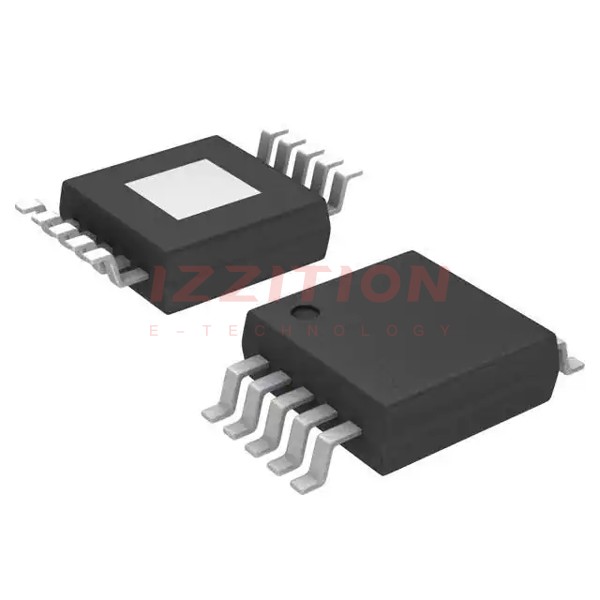

| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP | 10-HVSSOP | 10-HVSSOP | 10-HVSSOP | 10-HVSSOP | 10-HVSSOP | 10-HVSSOP |
