| Part Number | TPS27S100ARRKR | TPS27S100BRRKR | TPS27S100ARRKT |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Switch Type | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | Logic | Logic | Logic |
| Voltage - Load | 4V ~ 40V | 4V ~ 40V | 4V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 13A | 13A | 13A |
| Rds On (Typ) | 80mOhm | 80mOhm | 80mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Shutdown | Shutdown | Shutdown |
| Fault Protection | Over Load, Over Temperature, Short Circuit, UVLO | Over Load, Over Temperature, Short Circuit, UVLO | Over Load, Over Temperature, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

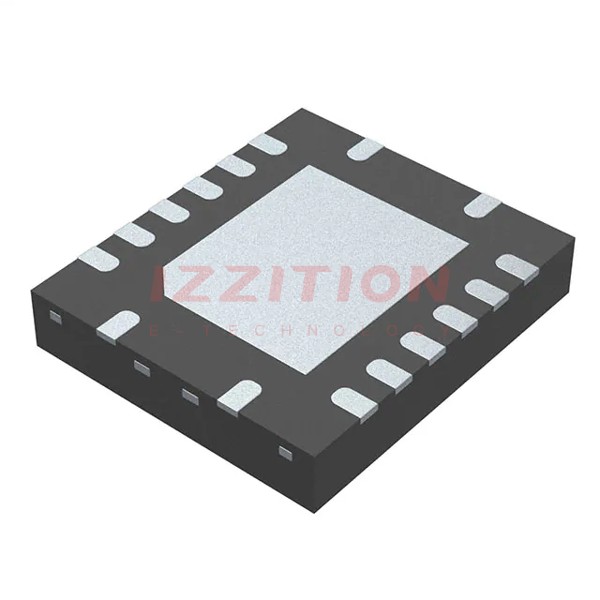

| Supplier Device Package | 16-WQFN (4x3.5) | 16-WQFN (4x3.5) | 16-WQFN (4x3.5) |
| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
