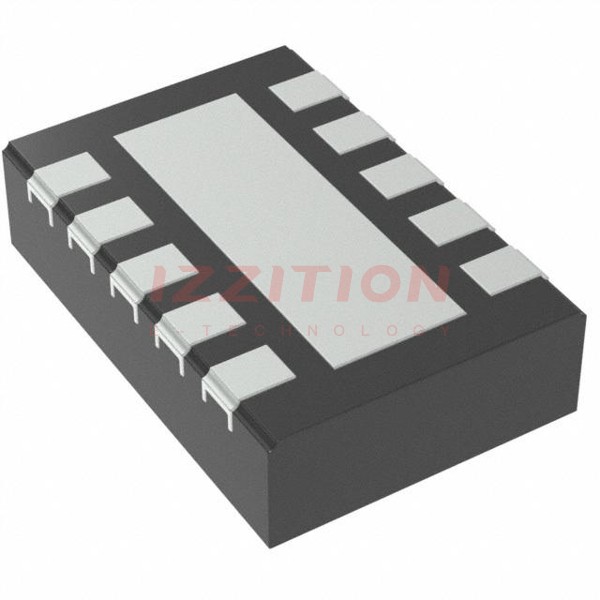

| Part Number | TPS22968QDMGTQ1 | TPS22968NQDMGTQ1 | TPS22968QDMGRQ1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 | 2 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 0.8V ~ 5.5V | 0.8V ~ 5.5V | 0.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| Current - Output (Max) | 4A | 4A | 4A |
| Rds On (Typ) | 29mOhm | 29mOhm | 29mOhm |
| Input Type | - | - | - |
| Features | Load Discharge, Slew Rate Controlled | Slew Rate Controlled | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 10-WSON (3x2) | 10-WSON (3x2) | 10-WSON (3x2) |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
