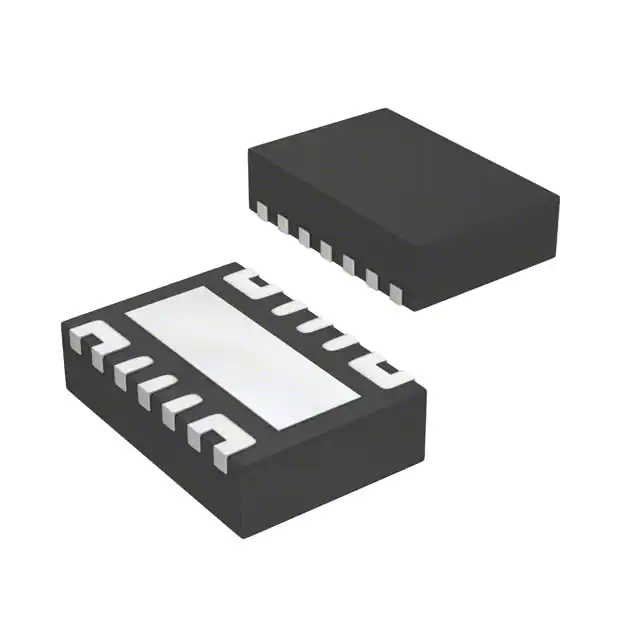

| Part Number | TPS22966DPUR | TPS22976DPUR | TPS22968DPUR | TPS22966DPUT |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side or Low Side | High Side | High Side | High Side or Low Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 2.5V ~ 5.5V | 2.5V ~ 5.7V | 0.8V ~ 5.5V | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 0.8V ~ 5.5V | - | Not Required | 0.8V ~ 5.5V |
| Current - Output (Max) | 6A | 6A | 4A | 6A |
| Rds On (Typ) | 18mOhm | 14mOhm | 27mOhm | 18mOhm |
| Input Type | Non-Inverting | - | Non-Inverting | Non-Inverting |
| Features | Load Discharge | Load Discharge | Load Discharge, Slew Rate Controlled | Load Discharge |
| Fault Protection | - | Over Temperature | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-WSON (3x2) | 14-WSON (3x2) | 14-WSON (3x2) | 14-WSON (3x2) |
| Package / Case | 14-PowerWFDFN | 14-PowerWFDFN | 14-PowerWFDFN | 14-PowerWFDFN |
