Please send RFQ , we will respond immediately.

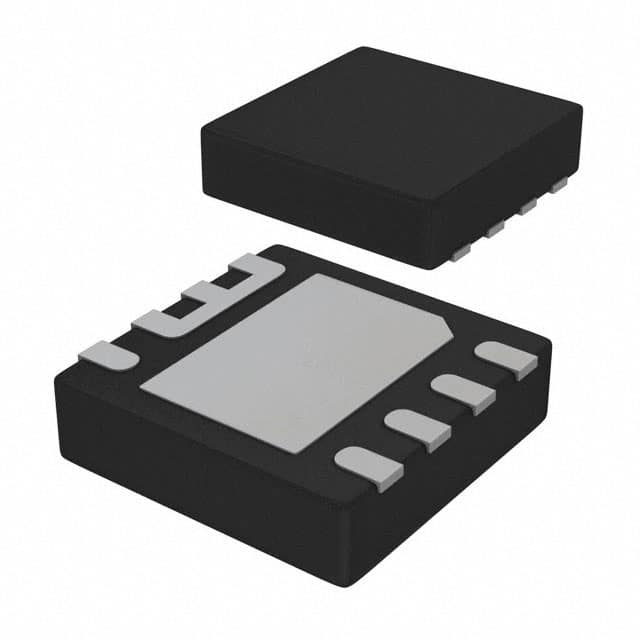

| Part Number | TPS22962DNYT | TPS22969DNYT | TPS22961DNYT | TPS22962DNYR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 0.8V ~ 5.5V | 2.5V ~ 5.5V | 3V ~ 5.5V | 0.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - | 0.8V ~ 5.5V | 0.8V ~ 5.5V | - |
| Current - Output (Max) | 10A | 6A | 6A | 10A |
| Rds On (Typ) | 4.4mOhm | 4.4mOhm | 6.5mOhm | 4.4mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WSON (3x3) | 8-WSON (3x3) | 8-WSON (3x3) | 8-WSON (3x3) |
| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
