Please send RFQ , we will respond immediately.

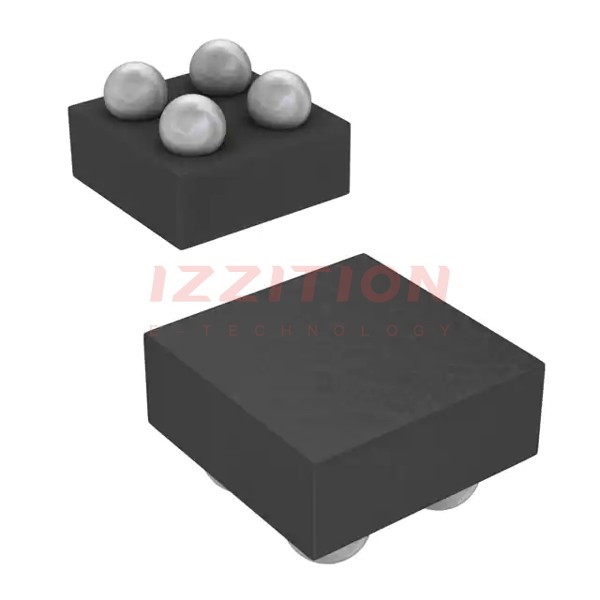

| Part Number | TPS22916CYFPT | TPS22914CYFPT | TPS22915CYFPT | TPS22916BYFPT | TPS22916CLYFPT | TPS22916CNYFPT | TPS22916CYFPR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | High Side | High Side |
| Output Type | P-Channel | N-Channel | N-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Interface | - | On/Off | On/Off | - | - | - | - |
| Voltage - Load | 5.5V | 1.05V ~ 5.5V | 1.05V ~ 5.5V | 0V ~ 5.5V | 0V ~ 5.5V | 0V ~ 5.5V | 5.5V |
| Voltage - Supply (Vcc/Vdd) | 1V ~ 5.5V | Not Required | Not Required | 1V ~ 5.5V | 1V ~ 5.5V | 1V ~ 5.5V | 1V ~ 5.5V |
| Current - Output (Max) | 2A | 2A | 2A | 2A | 2A | 2A | 2A |
| Rds On (Typ) | 200mOhm | 37mOhm | 37mOhm | 200mOhm | 200mOhm | 200mOhm | 200mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Inverting | Non-Inverting | Non-Inverting |
| Features | Slew Rate Controlled | Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Slew Rate Controlled | Slew Rate Controlled | Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | Reverse Current | - | - | Reverse Current | Reverse Current | Reverse Current | Reverse Current |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-DSBGA | 4-DSBGA | 4-DSBGA | 4-DSBGA | 4-DSBGA | 4-DSBGA | 4-DSBGA |
| Package / Case | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA |
