| Part Number | TPS22910AYZVR | TPS22930AYZVR | TPS22910AYZVT |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 1.4V ~ 5.5V | 1.4V ~ 5.5V | 1.4V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 2A | 2A | 2A |
| Rds On (Typ) | 60mOhm | 35mOhm | 60mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Slew Rate Controlled | Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | Reverse Current, UVLO | Reverse Current, UVLO | Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

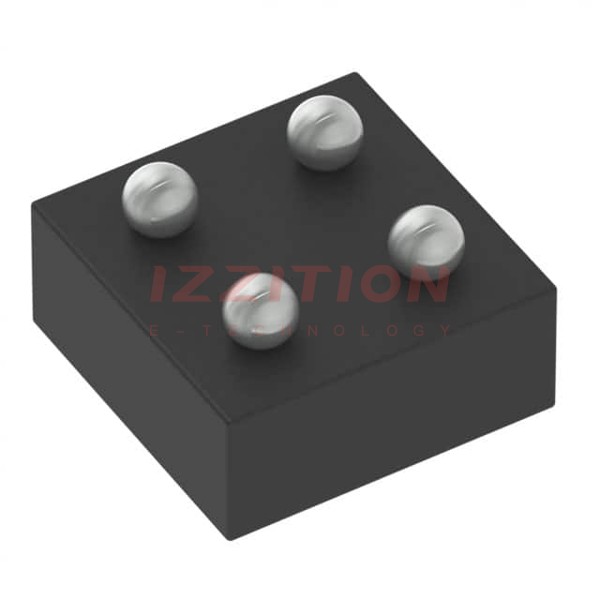

| Supplier Device Package | 4-DSBGA (0.88x0.88) | 4-DSBGA (0.88x0.88) | 4-DSBGA (0.88x0.88) |
| Package / Case | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA |
