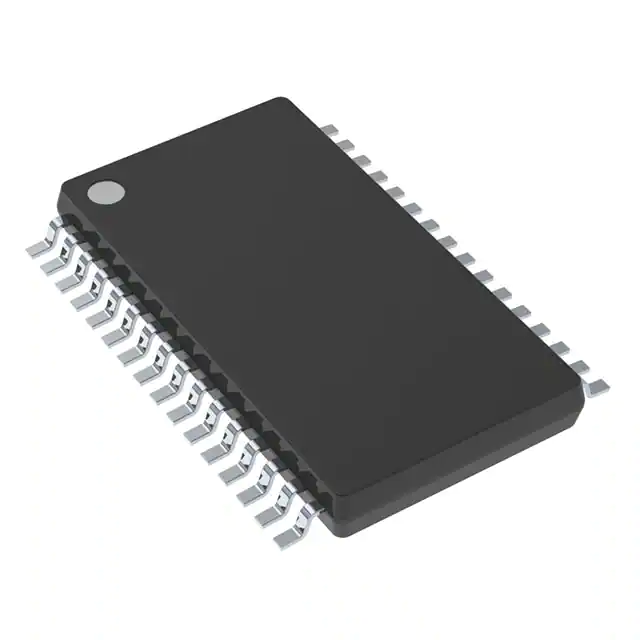

| Part Number | TPS2216DAP | TPS2236DAP | TPS2216DAPR | TPS2216ADAP |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Switch Type | PCMCIA Switch | ExpressCard™ Switch | PCMCIA Switch | PCMCIA Switch |
| Number of Outputs | 4 | 6 | 4 | 4 |
| Ratio - Input:Output | 1:1 | 1:2 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | - | - | - | - |
| Interface | Serial | - | Serial | Serial |
| Voltage - Load | 3.3V, 5V, 12V | 1.5V, 3.3V | 3.3V, 5V, 12V | 3.3V, 5V, 12V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 1A | 1.3A | 1A | 750mA |
| Rds On (Typ) | 60mOhm | 45mOhm | 60mOhm | 140mOhm |
| Input Type | - | - | - | - |
| Features | Status Flag | Power Good, Status Flag | Status Flag | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 32-HTSSOP | 32-HTSSOP | 32-HTSSOP | 32-HTSSOP |
| Package / Case | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad |
