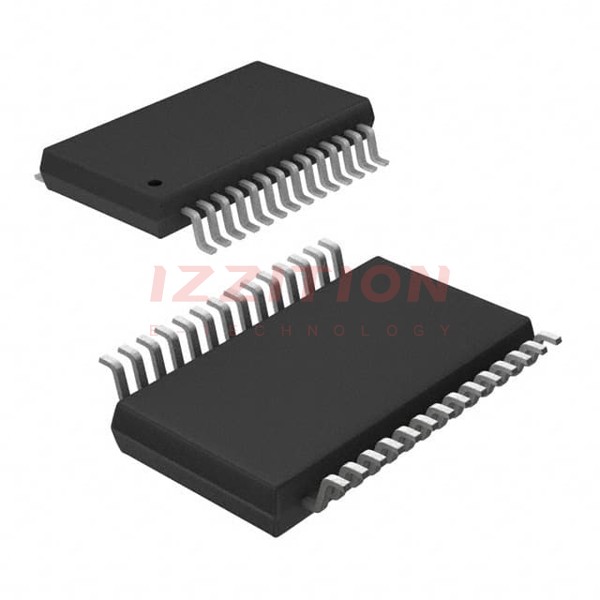

| Part Number | TPS2202AIDFR | TPS2202IDFR | TPS2202AIDBR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Type | PCMCIA Switch | PCMCIA Switch | PCMCIA Switch |
| Number of Outputs | 4 | 4 | 4 |
| Ratio - Input:Output | 3:4 | 3:4 | 3:4 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | - | - | - |
| Interface | Serial | Serial | Serial |
| Voltage - Load | 3.3V, 5V, 12V | 3.3V, 5V, 12V | 3.3V, 5V, 12V |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Current - Output (Max) | 1A | 1A | 1A |
| Rds On (Typ) | 160mOhm (Max) | 160mOhm (Max) | 160mOhm (Max) |
| Input Type | - | - | - |
| Features | Power Good, Status Flag | Power Good, Status Flag | Power Good, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 30-SSOP | 30-SSOP | 30-SSOP |
| Package / Case | 30-SSOP (0.209", 5.30mm Width) | 30-SSOP (0.209", 5.30mm Width) | 30-SSOP (0.209", 5.30mm Width) |
