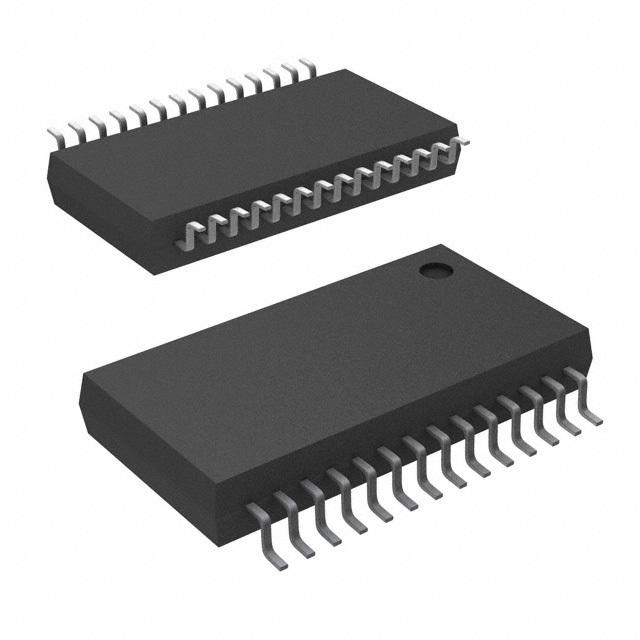

| Part Number | TPIC46L02DBG4 | TPIC46L02DBRG4 | TPIC46L03DBG4 | TPIC44L02DBG4 | TPIC46L01DBG4 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 6 | 6 | 6 | 4 | 6 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | - | - | - | - | - |
| Current - Peak Output (Source, Sink) | 1.2mA, 1.2mA | 1.2mA, 1.2mA | 1.2mA, 1.2mA | 1.2mA, 1.2mA | 1.2mA, 1.2mA |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - |
| Rise / Fall Time (Typ) | 3.5µs, 3µs | 3.5µs, 3µs | 3.5µs, 3µs | 3.5µs, 3µs | 3.5µs, 3µs |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 24-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | 28-SSOP | 28-SSOP | 24-SSOP | 28-SSOP |
