Texas Instruments-TPD4E02B04DQAR - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	4
Voltage - Reverse Standoff (Typ):	3.6V (Max)
Voltage - Breakdown (Min):	5.5V
Voltage - Clamping (Max) @ Ipp:	8.8V (Typ)
Current - Peak Pulse (10/1000µs):	5A (8/20µs)
Power - Peak Pulse:	17W
Power Line Protection:	No
Applications:	HDMI
Capacitance @ Frequency:	0.27pF @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-UFDFN
Supplier Device Package:	10-USON (2.5x1)

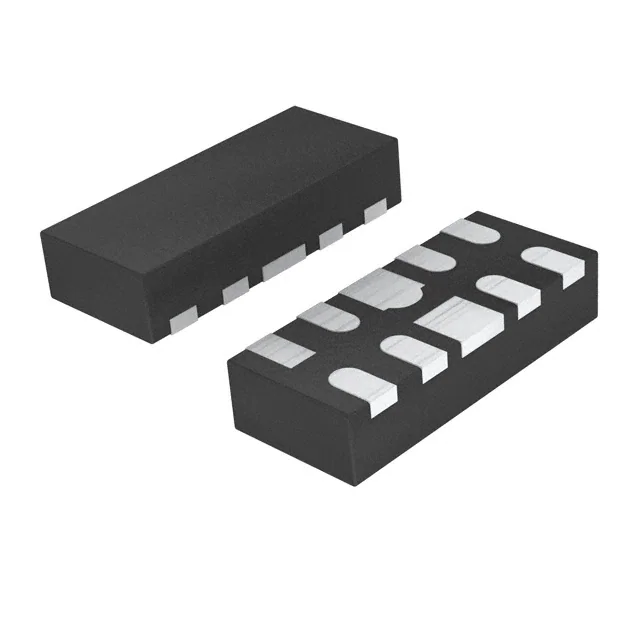

Texas Instruments TPD4E02B04DQAR
