Texas Instruments-TPD3F303DPVR - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	3
Center / Cutoff Frequency:	294MHz, 308MHz (Cutoff)
Attenuation Value:	-
Resistance - Channel (Ohms):	47, 100
Current:	-
Values:	R = 47Ohms, 100Ohms, C = 20pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	8-UFDFN Exposed Pad
Size / Dimension:	0.083" L x 0.063" W (2.10mm x 1.60mm)
Height:	0.026" (0.65mm)

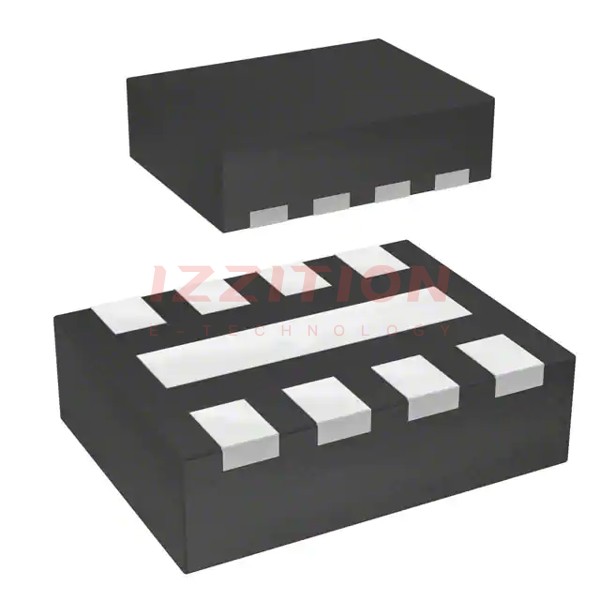

Texas Instruments TPD3F303DPVR
