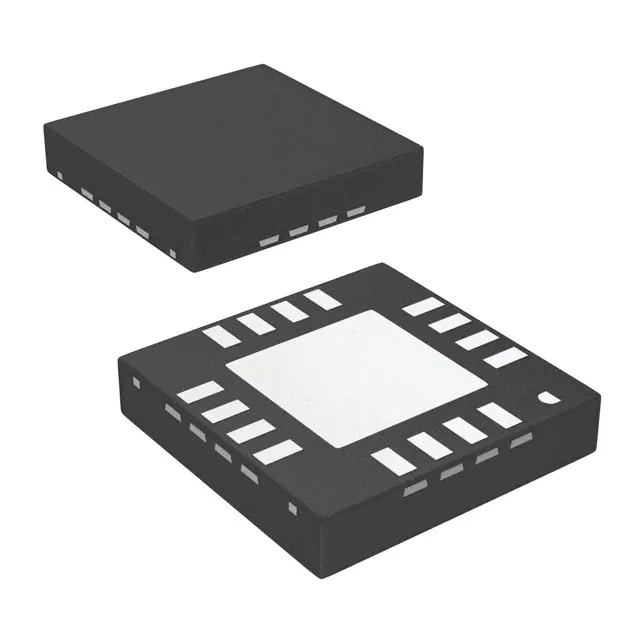

| Part Number | TMUX7462FRRPR | TMUX7412FRRPR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Switch Circuit | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 |
| On-State Resistance (Max) | 10.5Ohm | 11Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm | 60mOhm |
| Voltage - Supply, Single (V+) | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V |
| Voltage - Supply, Dual (V±) | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | - | 740ns, 100ns |
| -3db Bandwidth | 550MHz | 550MHz |
| Charge Injection | - | 330pC |
| Channel Capacitance (CS(off), CD(off)) | - | 10pF, 12pF |
| Current - Leakage (IS(off)) (Max) | - | 700pA |
| Crosstalk | -100dB @ 1MHz | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) | 16-WQFN (4x4) |
