| Part Number | TMUX7309FRRPR | TMUX7308FRRPR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Switch Circuit | 4PST | 8PST |
| Multiplexer/Demultiplexer Circuit | 4:1 | 8:1 |
| Number of Circuits | 2 | 1 |
| On-State Resistance (Max) | 250Ohm | 250Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.5Ohm | 2.5Ohm |
| Voltage - Supply, Single (V+) | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V |
| Voltage - Supply, Dual (V±) | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 390ns, 450ns | 390ns, 450ns |
| -3db Bandwidth | 255MHz | 130MHz |
| Charge Injection | -16pC | -16pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 16pF | 4pF, 31pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA |
| Crosstalk | -103dB @ 1MHz | -95dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

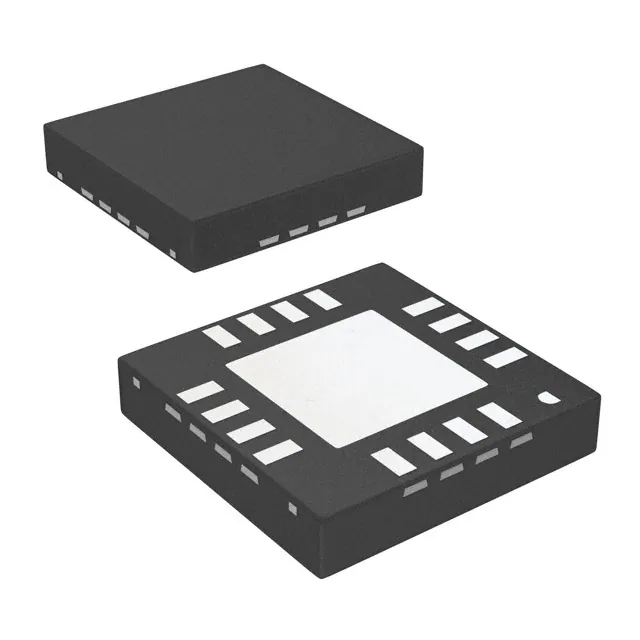

| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) | 16-WQFN (4x4) |
