| Part Number | TMUX6209RUMR | TMUX7209RUMR | TMUX6208RUMR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Switch Circuit | 4PST | 4PST | 8PST |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 8:1 |
| Number of Circuits | 2 | 2 | 1 |
| On-State Resistance (Max) | 6.2Ohm | 5.5Ohm | 6.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm | 200mOhm | 200mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V, ±4.5V ~ 18V | 4.5V ~ 44V, ±4.5V ~ 22V | 4.5V ~ 36V, ±4.5V ~ 18V |
| Voltage - Supply, Dual (V±) | 4.5V ~ 36V, ±4.5V ~ 18V | 4.5V ~ 44V, ±4.5V ~ 22V | 4.5V ~ 36V, ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 200ns, 290ns | 205ns, 268ns | 200ns, 290ns |
| -3db Bandwidth | 50MHz | 51MHz | 30MHz |
| Charge Injection | 2pC | -5pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 68pF | 15pF, 67pF | 15pF, 138pF |
| Current - Leakage (IS(off)) (Max) | 400pA | 1nA | 400pA |
| Crosstalk | -65dB @ 1MHz | -85dB @ 1MHz | -65dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

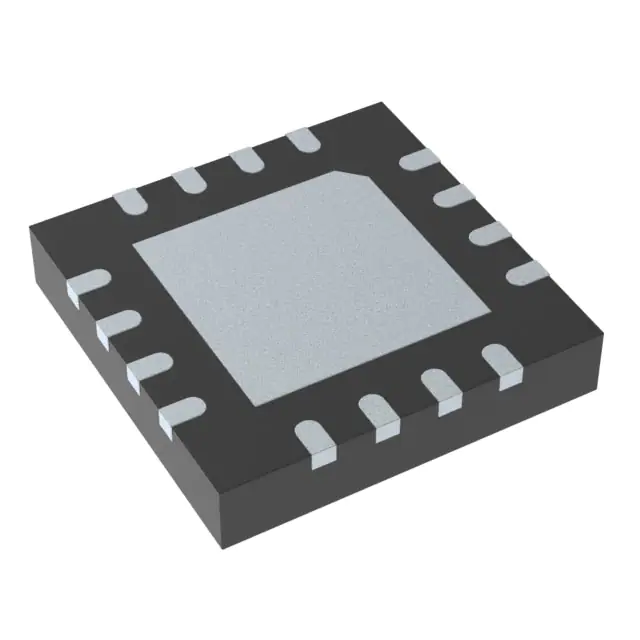

| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) | 16-WQFN (4x4) | 16-WQFN (4x4) |
