Please send RFQ , we will respond immediately.

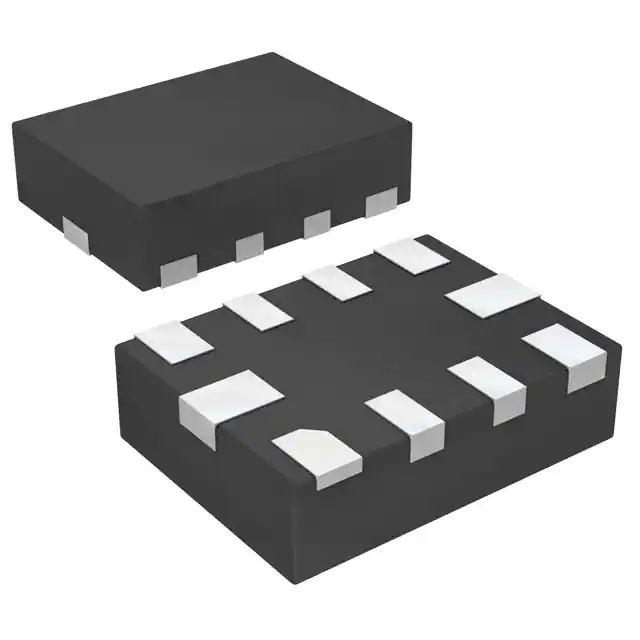

| Part Number | TMUX136RSER | TMUX136MRSER |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Switch Circuit | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 9.5Ohm | 9.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm | 100mOhm |
| Voltage - Supply, Single (V+) | 2.3V ~ 4.8V | 2.3V ~ 4.8V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | - | - |
| -3db Bandwidth | 6.1GHz | 6.1GHz |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 1.6pF, 1.6pF | 1.6pF, 1.6pF |
| Current - Leakage (IS(off)) (Max) | 2µA | 2µA |
| Crosstalk | -37dB @ 240MHz | -37dB @ 240MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN | 10-UFQFN |
| Supplier Device Package | 10-UQFN (2.0x1.5) | 10-UQFN (2.0x1.5) |
