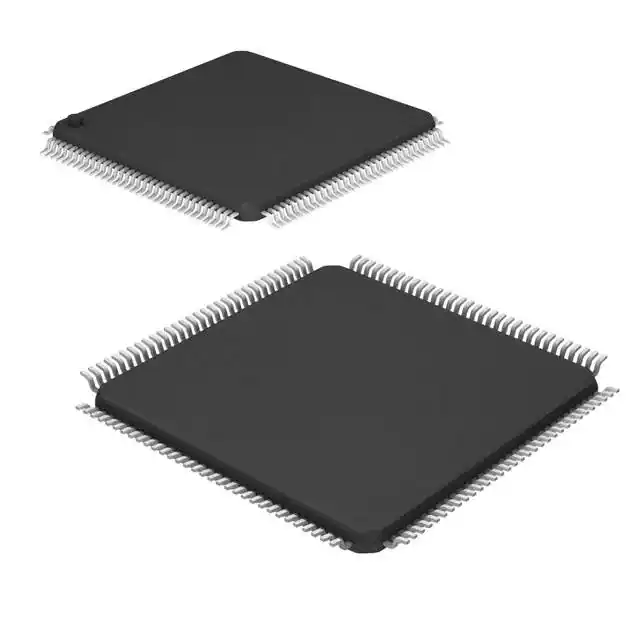

| Part Number | TMS320F2811PBKA | TMS320F2811PBKS | TMS320F2811PBKQ | TMS320F2810PBKA |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Core Processor | C28x | C28x | C28x | C28x |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 150MHz | 150MHz | 150MHz | 150MHz |
| Connectivity | CANbus, McBSP, SCI, SPI, UART/USART | CANbus, McBSP, SCI, SPI, UART/USART | CANbus, McBSP, SCI, SPI, UART/USART | CANbus, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 56 | 56 | 56 | 56 |
| Program Memory Size | 256KB (128K x 16) | 256KB (128K x 16) | 256KB (128K x 16) | 128KB (64K x 16) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 18K x 16 | 18K x 16 | 18K x 16 | 18K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.81V ~ 2V | 1.81V ~ 2V | 1.81V ~ 2V | 1.81V ~ 2V |
| Data Converters | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 128-LQFP | 128-LQFP | 128-LQFP | 128-LQFP |
| Supplier Device Package | 128-LQFP (14x14) | 128-LQFP (14x14) | 128-LQFP (14x14) | 128-LQFP (14x14) |
