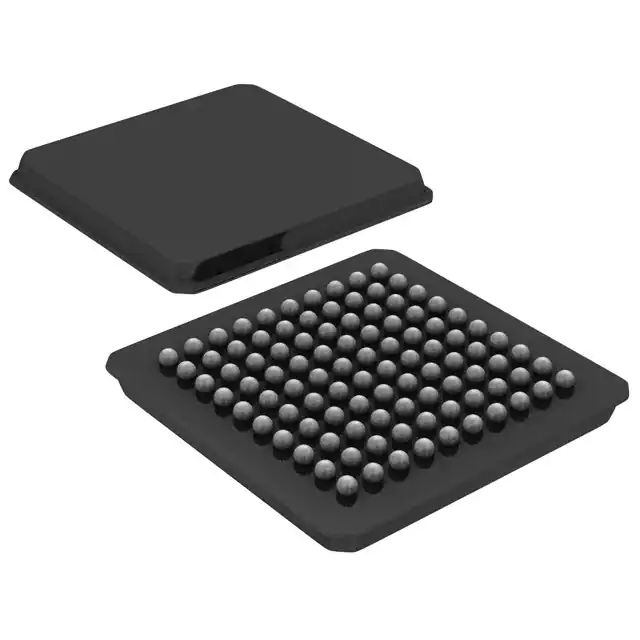

| Part Number | TMS320F2801ZGMA | TMS320F2801ZGMS | TMS320F2802ZGMA | TMS320F28015ZGMA | TMS320F2801GGMA |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | C28x | C28x | C28x | C28x | C28x |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 100MHz | 60MHz | 100MHz |
| Connectivity | CANbus, I²C, SCI, SPI, UART/USART | CANbus, I²C, SCI, SPI, UART/USART | CANbus, I²C, SCI, SPI, UART/USART | I²C, SCI, SPI, UART/USART | CANbus, I²C, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 35 | 35 | 35 | 35 | 35 |
| Program Memory Size | 32KB (16K x 16) | 32KB (16K x 16) | 64KB (32K x 16) | 32KB (16K x 16) | 32KB (16K x 16) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 6K x 16 | 6K x 16 | 6K x 16 | 6K x 16 | 6K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V |
| Data Converters | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LFBGA | 100-LFBGA | 100-LFBGA | 100-LFBGA | 100-LFBGA |
| Supplier Device Package | 100-BGA MICROSTAR (10x10) | 100-BGA MICROSTAR (10x10) | 100-BGA MICROSTAR (10x10) | 100-BGA MICROSTAR (10x10) | 100-BGA MICROSTAR (10x10) |
