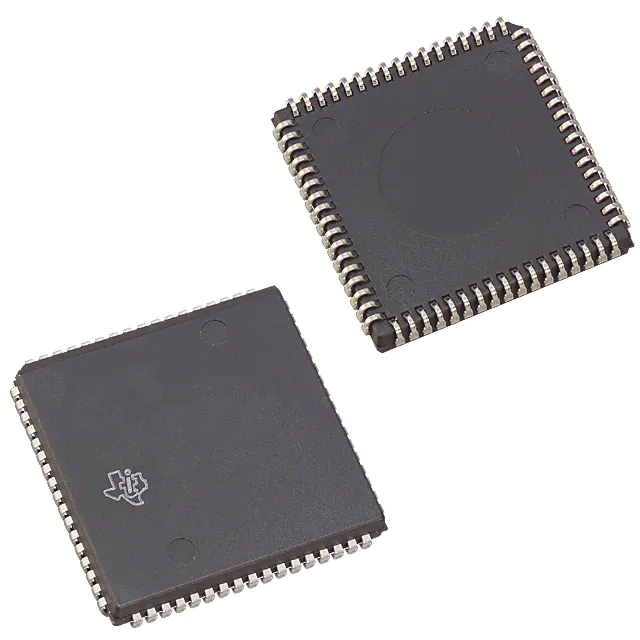

| Part Number | TMS320F241FN | TMS320F241FNS | TMS320F241FNA |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | C2xx DSP | C2xx DSP | C2xx DSP |
| Core Size | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz |
| Connectivity | CANbus, SCI, SPI, UART/USART | CANbus, SCI, SPI, UART/USART | CANbus, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 26 | 26 | 26 |
| Program Memory Size | 16KB (8K x 16) | 16KB (8K x 16) | 16KB (8K x 16) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 1K x 8 | 1K x 8 | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 68-LCC (J-Lead) | 68-LCC (J-Lead) | 68-LCC (J-Lead) |
| Supplier Device Package | 68-PLCC (24.23x24.23) | 68-PLCC (24.23x24.23) | 68-PLCC (24.23x24.23) |
