Please send RFQ , we will respond immediately.

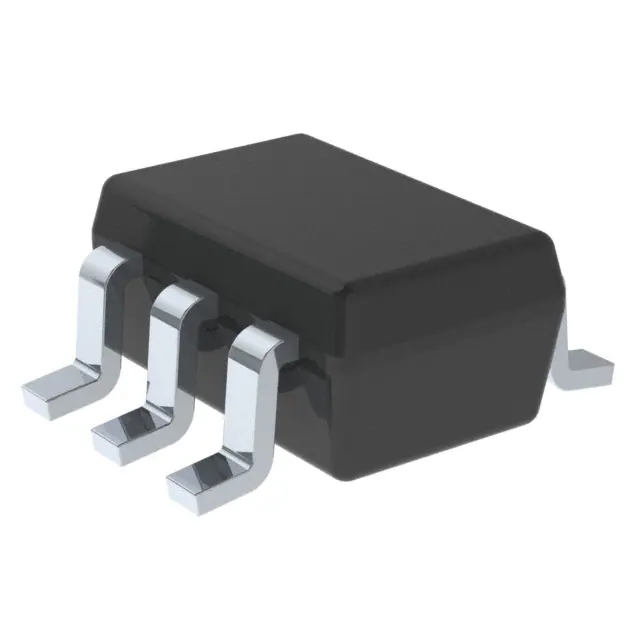

| Part Number | TLVH431IDCKT | TLVH431QDCKT | TLVH431BIDCKT | TLVH431CDCKT | TLVH431IDCKR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Reference Type | Shunt | Shunt | Shunt | Shunt | Shunt |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V | 1.24V | 1.24V | 1.24V | 1.24V |
| Voltage - Output (Max) | 18 V | 18 V | 18 V | 18 V | 18 V |
| Current - Output | 70 mA | 70 mA | 70 mA | 70 mA | 70 mA |
| Tolerance | ±1.5% | ±1.5% | ±0.5% | ±1.5% | ±1.5% |
| Temperature Coefficient | - | - | - | - | - |
| Noise - 0.1Hz to 10Hz | - | - | - | - | - |
| Noise - 10Hz to 10kHz | - | - | - | - | - |
| Voltage - Input | - | - | - | - | - |
| Current - Supply | - | - | - | - | - |
| Current - Cathode | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 |
