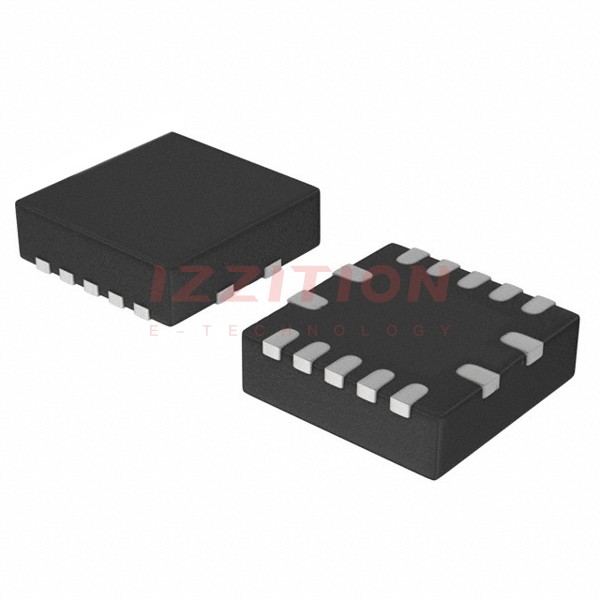

| Part Number | TLV9064IRUCR | TLV9004IRUCR | TLV9054IRUCR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Amplifier Type | CMOS | General Purpose | CMOS |
| Number of Circuits | 4 | 4 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 6.5V/µs | 2V/µs | 15V/µs |
| Gain Bandwidth Product | 10 MHz | 1 MHz | 5 MHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 0.5 pA | 5 pA | 2 pA |
| Voltage - Input Offset | 300 µV | 400 µV | 330 µV |
| Current - Supply | 538µA (x4 Channels) | 60µA | 330µA |
| Current - Output / Channel | 50 mA | 40 mA | 50 mA |
| Voltage - Supply Span (Min) | 1.8 V | 1.8 V | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-XFQFN | 14-XFQFN | 14-XFQFN |
| Supplier Device Package | 14-QFN (2x2) | 14-QFN (2x2) | 14-QFN (2x2) |
