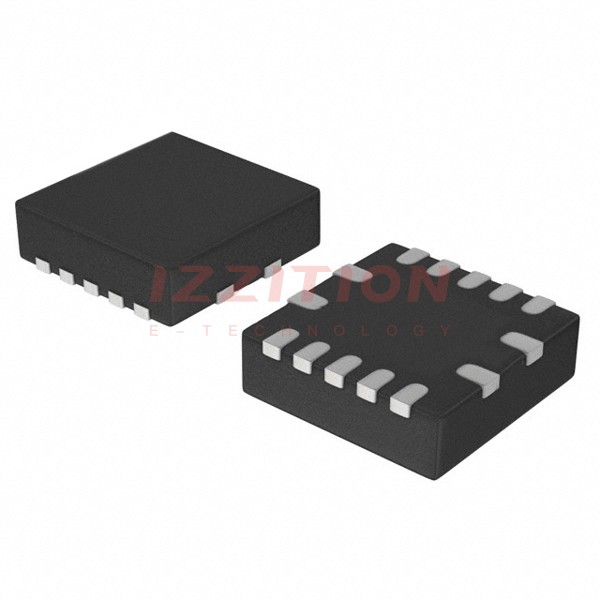

| Part Number | TLV9054IRUCR | TLV9064IRUCR | TLV9154IRUCR | TLV9004IRUCR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Amplifier Type | CMOS | CMOS | General Purpose | General Purpose |
| Number of Circuits | 1 | 4 | 4 | 4 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Push-Pull, Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 15V/µs | 6.5V/µs | 21V/µs | 2V/µs |
| Gain Bandwidth Product | 5 MHz | 10 MHz | 4.5 MHz | 1 MHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 2 pA | 0.5 pA | 10 pA | 5 pA |
| Voltage - Input Offset | 330 µV | 300 µV | 125 µV | 400 µV |
| Current - Supply | 330µA | 538µA (x4 Channels) | 560µA (x4 Channels) | 60µA |
| Current - Output / Channel | 50 mA | 50 mA | 75 mA | 40 mA |
| Voltage - Supply Span (Min) | 1.8 V | 1.8 V | 2.7 V | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 16 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-XFQFN | 14-XFQFN | 14-XFQFN | 14-XFQFN |
| Supplier Device Package | 14-QFN (2x2) | 14-QFN (2x2) | 14-X2QFN (2x2) | 14-QFN (2x2) |
