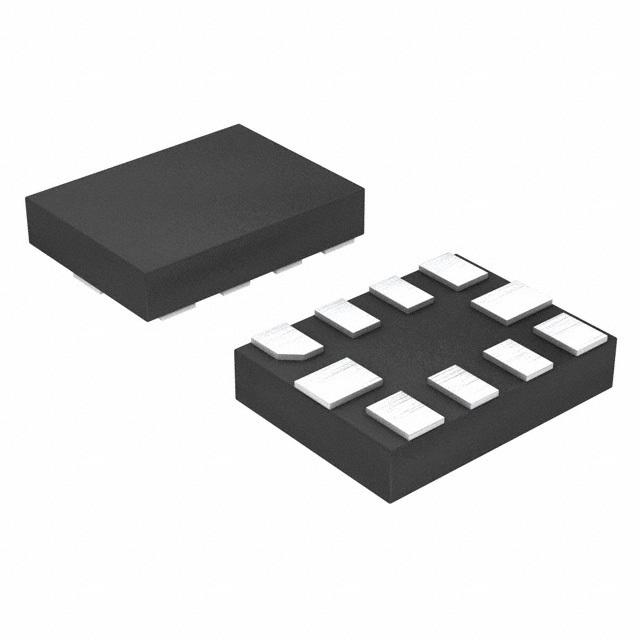

| Part Number | TLV9002SIRUGR | TLV9062SIRUGR | TLV9042SIRUGR | TLV9052SIRUGR | TLV9102SIRUGR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | General Purpose | CMOS | General Purpose | CMOS | General Purpose |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 2V/µs | 6.5V/µs | - | 15V/µs | 4.5V/µs |
| Gain Bandwidth Product | 1 MHz | 10 MHz | 350 kHz | 5 MHz | 1.1 MHz |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 5 pA | 0.5 pA | 5 pA | 2 pA | 10 pA |
| Voltage - Input Offset | 400 µV | 300 µV | 400 µV | 330 µV | 300 µV |
| Current - Supply | 60µA | 538µA (x2 Channels) | 10µA | 330µA | 115µA (x2 Channels) |
| Current - Output / Channel | 40 mA | 50 mA | 40 mA | 50 mA | 80 mA |
| Voltage - Supply Span (Min) | 1.8 V | 1.8 V | 1.2 V | 1.8 V | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 16 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-XFQFN | 10-XFQFN | 10-XFQFN | 10-XFQFN | 10-XFQFN |
| Supplier Device Package | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) | 10-X2QFN (2x1.5) |
