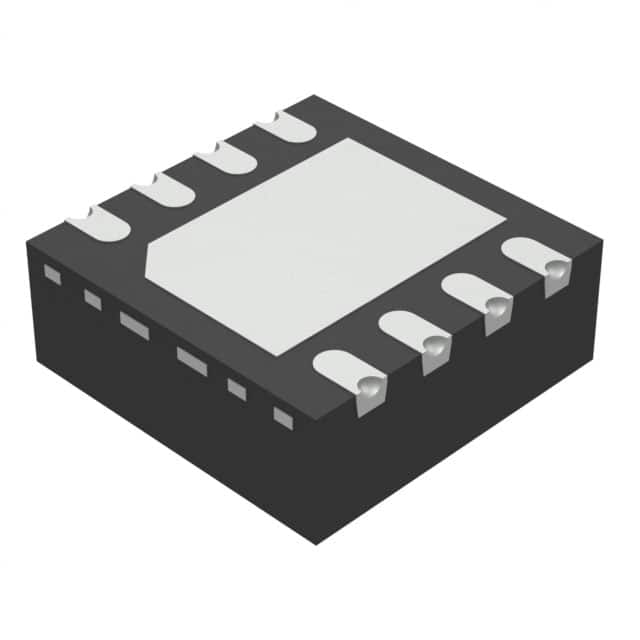

| Part Number | TLV76733QWDRBRQ1 | TLV76633QWDRBRQ1 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 1.5V @ 1A | 0.75V @ 500mA |
| Current - Output | 1A | 500mA |
| Current - Quiescent (Iq) | 95 µA | 95 µA |
| Current - Supply (Max) | - | - |
| PSRR | - | - |
| Control Features | Current Limit, Enable, Soft Start | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) | 8-SON (3x3) |
