Please send RFQ , we will respond immediately.

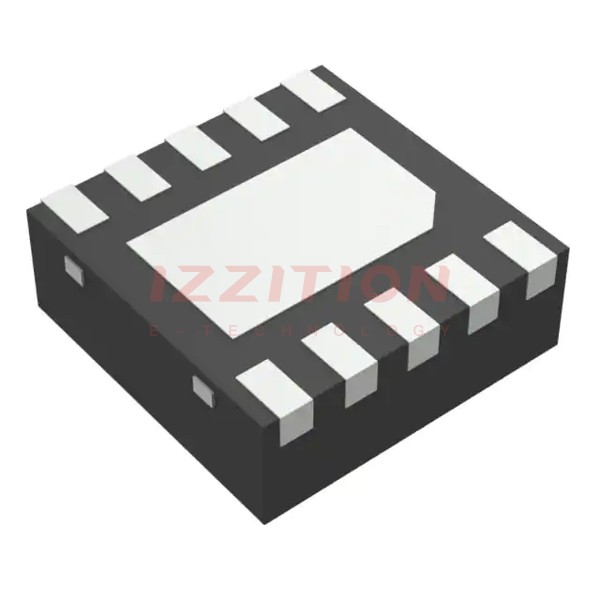

| Part Number | TLV75201PDSQT | TLV75101PDSQT | TLV75201PDSQR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 2 | 2 | 2 |
| Voltage - Input (Max) | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 0.55V | 0.55V | 0.55V |
| Voltage - Output (Max) | 5.5V | 5.5V | 5.5V |
| Voltage Dropout (Max) | 1.05V @ 1A | 0.88V @ 500mA | 1.05V @ 1A |
| Current - Output | 1A | 500mA | 1A |
| Current - Quiescent (Iq) | 35 µA | 35 µA | 35 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 50dB ~ 30dB (1kHz ~ 1MHz) | 50dB ~ 30dB (1kHz ~ 1MHz) | 50dB ~ 30dB (1kHz ~ 1MHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (2x2) | 10-WSON (2x2) | 10-WSON (2x2) |
