| Part Number | TLV751180300PDSQR | TLV751180330PDSQR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 6V | 6V |
| Voltage - Output (Min/Fixed) | 1.8V, 3V | 1.8V, 3.3V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.19V @ 500mA, 0.14V @ 500mA | 0.19V @ 500mA, 0.13V @ 500mA |
| Current - Output | 500mA, 500mA | 500mA, 500mA |
| Current - Quiescent (Iq) | 35 µA | 35 µA |
| Current - Supply (Max) | - | - |
| PSRR | 50dB ~ 30dB (1kHz ~ 1MHz) | 50dB ~ 30dB (1kHz ~ 1MHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

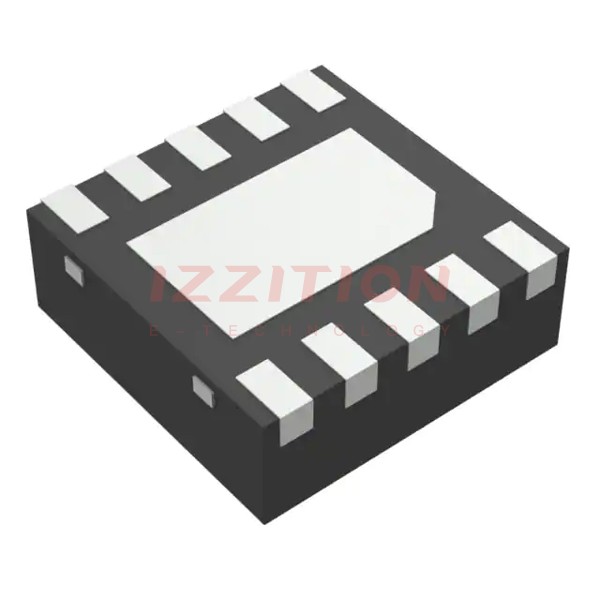

| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (2x2) | 10-WSON (2x2) |
