| Part Number | TLV71715PDQNT | TLV71718PDQNT | TLV71725PDQNT | TLV717185PDQNT | TLV71315PDQNT | TLV71712PDQNT | TLV71713PDQNT | TLV71715PDQNR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.8V | 2.5V | 1.85V | 1.5V | 1.2V | 1.3V | 1.5V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.45V @ 150mA | 0.35V @ 150mA | 0.35V @ 150mA | 0.35V @ 150mA | 1.02V @ 150mA | 0.5V @ 150mA | 0.5V @ 150mA | 0.45V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 55 µA | 55 µA | 55 µA | 55 µA | 75 µA | 55 µA | 55 µA | 55 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - |
| PSRR | 70dB ~ 43dB (10Hz ~ 100kHz) | 70dB ~ 43dB (10Hz ~ 100kHz) | 70dB ~ 43dB (10Hz ~ 100kHz) | 70dB ~ 43dB (10Hz ~ 100kHz) | 70dB ~ 55dB (100Hz ~ 1MHz) | 70dB ~ 43dB (10Hz ~ 100kHz) | 70dB ~ 43dB (10Hz ~ 100kHz) | 70dB ~ 43dB (10Hz ~ 100kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

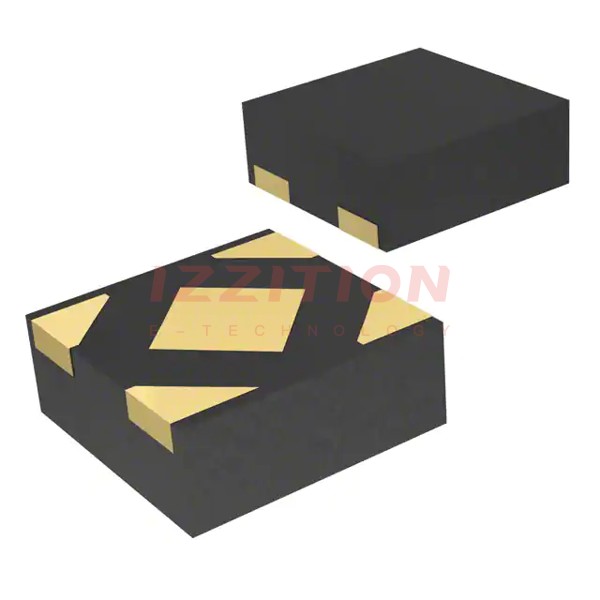

| Package / Case | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) |
