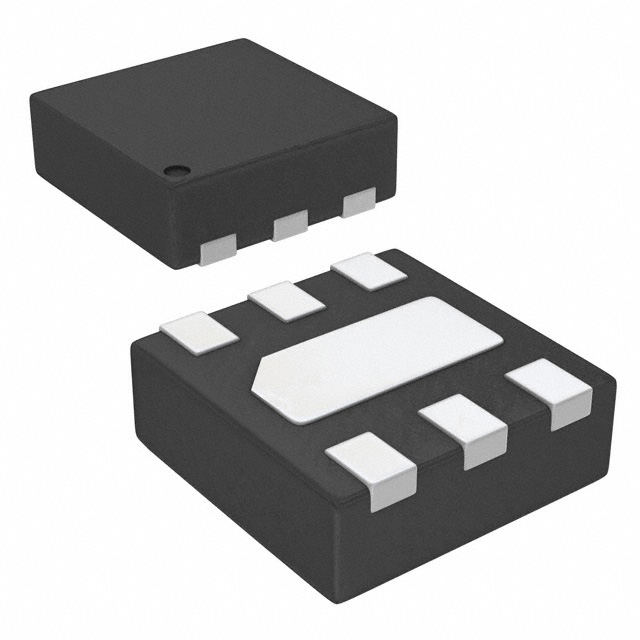

| Part Number | TLV7163318PDPQR | TLV7163318PDPQT |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V, 1.8V | 3.3V, 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.42V @ 150mA, 0.58V @ 150mA | 0.42V @ 150mA, 0.58V @ 150mA |
| Current - Output | 150mA | 150mA |
| Current - Quiescent (Iq) | 75 µA | 75 µA |
| Current - Supply (Max) | - | - |
| PSRR | 80dB ~ 46dB (100Hz ~ 10kHz) | 80dB ~ 46dB (100Hz ~ 10kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-X2SON (1.2x1.2) | 6-X2SON (1.2x1.2) |
