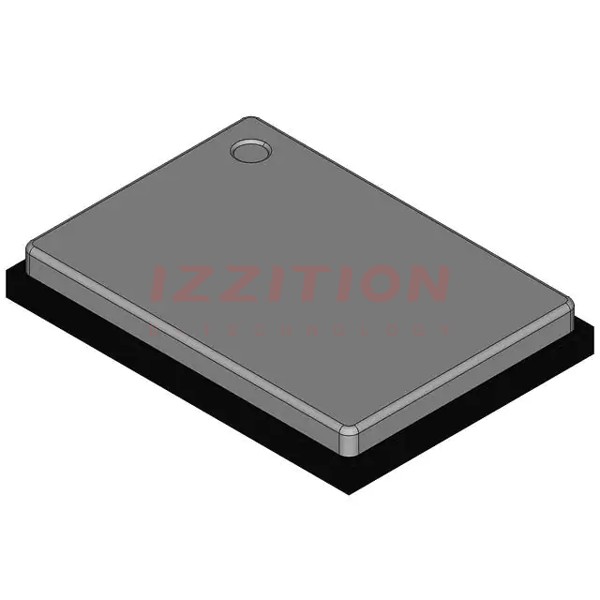

| Part Number | TLV70710DQNR | TLV70710DQNT | TLV70717DQNR | TLV70718DQNR | TLV70730DQNR | TLV70710PDQNR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | - | Positive | Positive | Positive | Positive | Positive |
| Output Type | - | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | - | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | - | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | - | 1V | 1.7V | 1.8V | 3V | 1V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.36V @ 150mA | 0.36V @ 150mA | 0.36V @ 150mA | 0.27V @ 150mA | 0.36V @ 150mA |
| Current - Output | - | 200mA | 200mA | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | - | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | - | 70dB ~ 50dB (100Hz ~ 1MHz) | 70dB ~ 50dB (100Hz ~ 1MHz) | 70dB ~ 50dB (100Hz ~ 1MHz) | 70dB ~ 50dB (100Hz ~ 1MHz) | 70dB ~ 50dB (100Hz ~ 1MHz) |
| Control Features | - | Enable | Enable | Enable | Enable | Enable |
| Protection Features | - | Over Current, Over Temperature, Short Circuit, Reverse Polarity | Over Current, Over Temperature, Short Circuit, Reverse Polarity | Over Current, Over Temperature, Short Circuit, Reverse Polarity | Over Current, Over Temperature, Short Circuit, Reverse Polarity | Over Current, Over Temperature, Short Circuit, Reverse Polarity |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | - | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) | 4-X2SON (1x1) |
