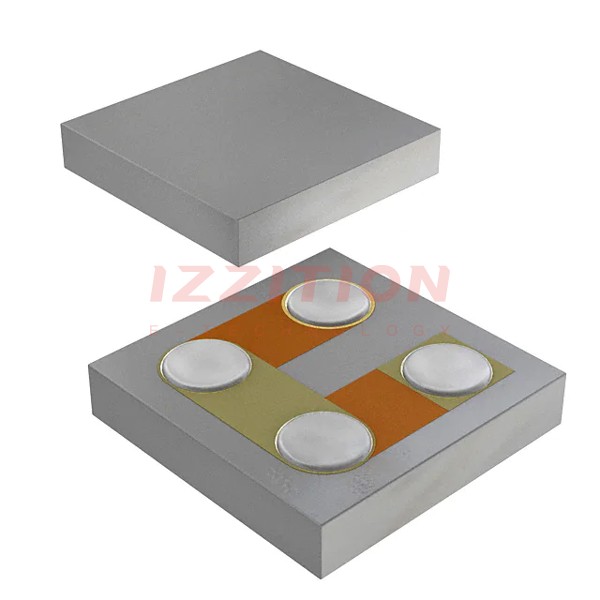

| Part Number | TLV70533YFMR | TLV70533YFMT | TLV70533YFPR | TLV70536YFMR | TLV70530YFMR | TLV70533YFFR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.6V | 3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.25V @ 200mA | 0.25V @ 200mA | 0.25V @ 200mA | 0.25V @ 200mA | 0.25V @ 200mA | 0.25V @ 200mA |
| Current - Output | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 55 µA | 55 µA | 55 µA | 55 µA | 55 µA | 55 µA |
| Current - Supply (Max) | 315 µA | 315 µA | 315 µA | 315 µA | 315 µA | 315 µA |
| PSRR | 80dB ~ 55dB (10kHz ~ 1MHz) | 80dB ~ 55dB (10kHz ~ 1MHz) | 80dB ~ 55dB (10kHz ~ 1MHz) | 80dB ~ 55dB (10kHz ~ 1MHz) | 80dB ~ 55dB (10kHz ~ 1MHz) | 80dB ~ 55dB (10kHz ~ 1MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-XFLGA, DSLGA | 4-XFLGA, DSLGA | 4-XFBGA, DSBGA | 4-XFLGA, DSLGA | 4-XFLGA, DSLGA | 4-UFBGA, DSBGA |
| Supplier Device Package | 4-DSLGA | 4-DSLGA | 4-DSBGA | 4-DSLGA | 4-DSLGA | 4-DSBGA (1x1) |
