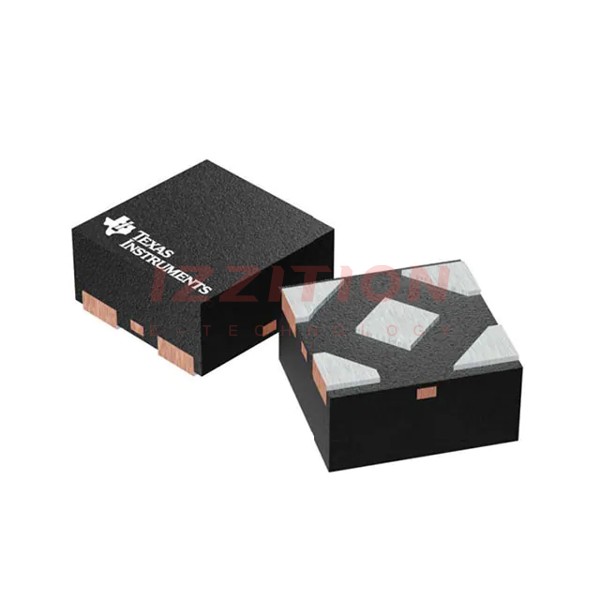

| Part Number | TLV7031DPWR | TLV7041DPWR | TLV7011DPWR | TLV7021DPWR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Type | General Purpose | General Purpose | - | - |
| Number of Elements | 1 | 1 | 1 | 1 |
| Output Type | Push-Pull | Open Drain | Push-Pull | Open Drain |
| Voltage - Supply, Single/Dual (±) | 1.6V ~ 6.5V | 1.6V ~ 6.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Voltage - Input Offset (Max) | 8mV @ 5V | 8mV @ 5V | 8mV | 8mV |
| Current - Input Bias (Max) | 2pA | 2pA | 1pA | 5pA |
| Current - Output (Typ) | - | - | - | - |
| Current - Quiescent (Max) | 335nA | 335nA | 5µA | 10µA |
| CMRR, PSRR (Typ) | 73dB CMRR, 77dB PSRR | 73dB CMRR, 77dB PSRR | 78dB CMRR, 78dB PSRR | 78dB CMRR, 78dB PSRR |
| Propagation Delay (Max) | 3µs (Typ) | 3µs (Typ) | 350ns | 350ns |
| Hysteresis | 7mV | 7mV | 4.2mV | 4.2mV |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Package / Case | 5-XFDFN Exposed Pad | 5-XFDFN Exposed Pad | 5-XFDFN Exposed Pad | 5-XFDFN |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 5-X2SON (0.8x0.8) | 5-X2SON (0.8x0.8) | 5-X2SON (0.8x0.8) | 5-X2SON (0.80x0.80) |
