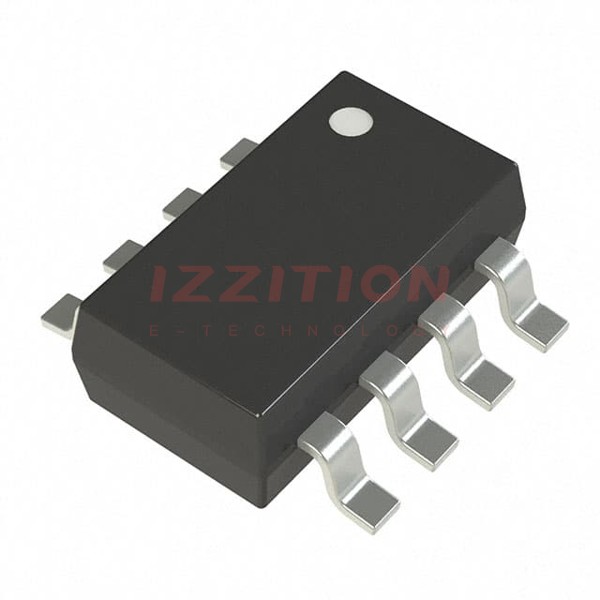

| Part Number | TLV7022DDFR | TLV7032DDFR | TLV7042DDFR | TLV9022DDFR | TLV7012DDFR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Elements | 2 | 2 | 2 | 2 | 2 |
| Output Type | Open-Drain, Rail-to-Rail | Push-Pull, Rail-to-Rail | Open-Drain, Rail-to-Rail | Open-Drain, Rail-to-Rail | Push-Pull, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 1.6V ~ 5.5V | 1.6V ~ 6.5V | 1.6V ~ 6.5V | 1.65V ~ 5.5V | 1.6V ~ 5.5V |
| Voltage - Input Offset (Max) | 8mV @ 5V | 8mV @ 5V | 8mV @ 5V | 1.5mV @ 5V | 8mV @ 5V |
| Current - Input Bias (Max) | 2pA @ 5V | 2pA @ 5V | 2pA @ 5V | 5pA @ 5V | 2pA @ 5V |
| Current - Output (Typ) | 33mA @ 5V | 33mA @ 5V | 33mA @ 5V | 100mA @ 5V | 33mA @ 5V |
| Current - Quiescent (Max) | 9µA | 900nA | 900nA | 30µA | 9µA |
| CMRR, PSRR (Typ) | 73dB CMRR, 77dB PSRR | 73dB CMRR, 77dB PSRR | 73dB CMRR, 77dB PSRR | 70dB CMRR, 95dB | 73dB CMRR, 77dB PSRR |
| Propagation Delay (Max) | 310ns (Typ) | 3µs (Typ) | 3µs (Typ) | 100ns | 310ns (Typ) |
| Hysteresis | 15mV | 17mV | 17mV | - | 15mV |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 |
