Please send RFQ , we will respond immediately.

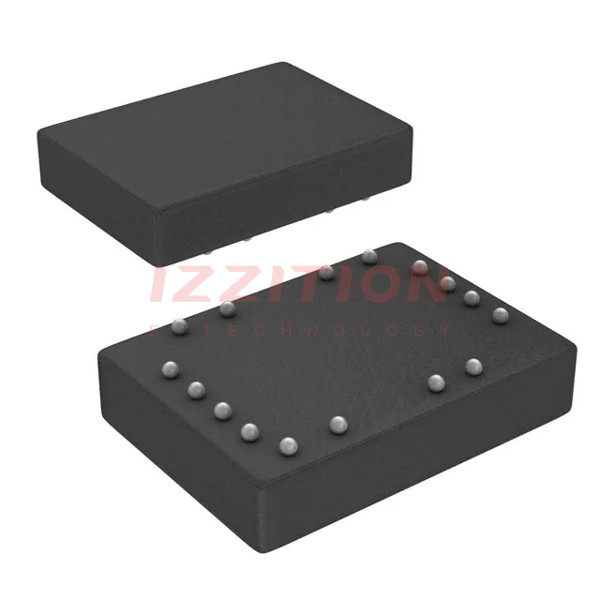

| Part Number | TLV5614IYE | TLV5614IYER | TLV5610IYE |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 |
| Number of D/A Converters | 4 | 4 | 8 |
| Settling Time | 20µs | 20µs | 7µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No |
| Data Interface | SPI | SPI | SPI |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V |
| INL/DNL (LSB) | ±1.5, ±0.5 | ±1.5, ±0.5 | ±2, ±0.5 |
| Architecture | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-UFBGA, WLCSP | 16-UFBGA, WLCSP | Die |
| Supplier Device Package | 16-WCSP | 16-WCSP | Diesale |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
