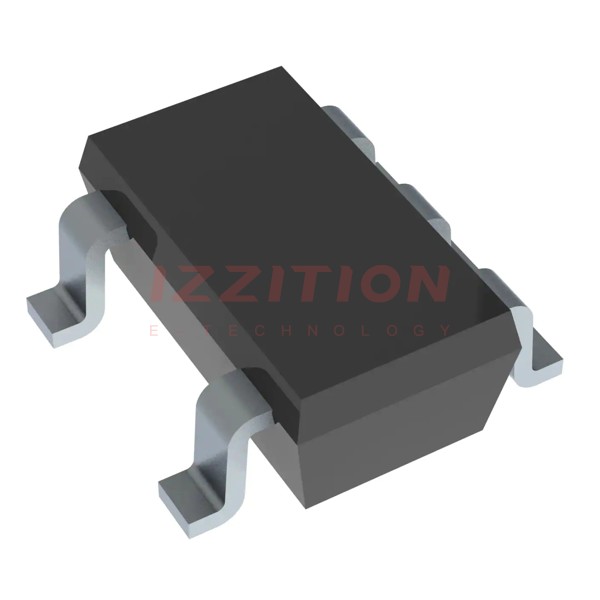

| Part Number | TLV431BCDBVTG4 | TLV431BCDBZTG4 | TLV431BIDBVTG4 | TLV431BQDBVTG4 | TLV431CDBVTG4 | TLV431ACDBVTG4 | TLV431BCDBVRG4 | TLV431BCDBVTE4 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| Reference Type | Shunt | Shunt | Shunt | Shunt | Shunt | Shunt | Shunt | Shunt |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V | 1.24V | 1.24V | 1.24V | 1.24V | 1.24V | 1.24V | 1.24V |
| Voltage - Output (Max) | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V |
| Current - Output | 15 mA | 15 mA | 15 mA | 15 mA | 15 mA | 15 mA | 15 mA | 15 mA |
| Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±1.5% | ±1% | ±0.5% | ±0.5% |
| Temperature Coefficient | - | - | - | - | - | - | - | - |
| Noise - 0.1Hz to 10Hz | - | - | - | - | - | - | - | - |
| Noise - 10Hz to 10kHz | - | - | - | - | - | - | - | - |
| Voltage - Input | - | - | - | - | - | - | - | - |
| Current - Supply | - | - | - | - | - | - | - | - |
| Current - Cathode | 100 µA | 100 µA | 100 µA | 100 µA | 80 µA | 80 µA | 100 µA | 100 µA |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-74A, SOT-753 | TO-236-3, SC-59, SOT-23-3 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | SOT-23-3 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
