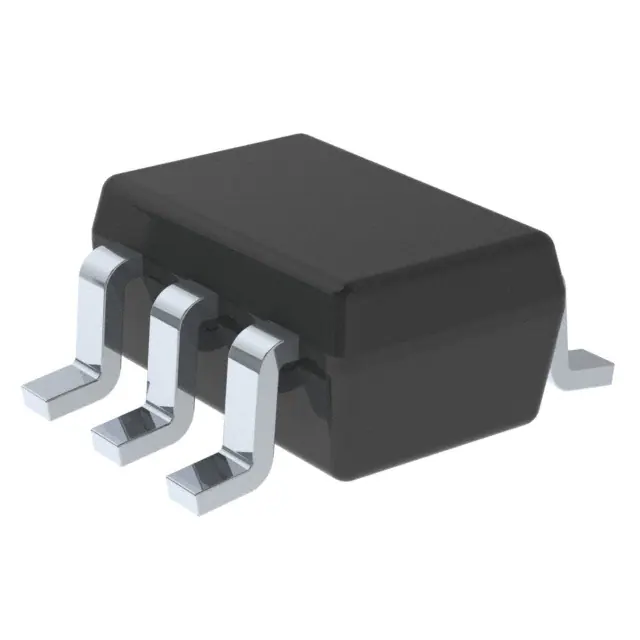

| Part Number | TLV3603DCKR | TLV3604DCKR | TLV3603DCKT | TLV3601DCKR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Elements | 1 | 1 | 1 | 1 |
| Output Type | CMOS, Push-Pull, Rail-to-Rail | Differential, LVDS, Rail-to-Rail | CMOS, Push-Pull, Rail-to-Rail | CMOS, Push-Pull, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 5.5V | 2.4V ~ 5.5V | 2.4V ~ 5.5V | 2.4V ~ 5.5V |
| Voltage - Input Offset (Max) | 5mV @ 5V | 5mV @ 5V | 5mV @ 5V | 5mV @ 5V |
| Current - Input Bias (Max) | 1µA @ 5V | 5µA @ 5V | 1µA @ 5V | 1µA @ 5V |
| Current - Output (Typ) | 30mA @ 5V | - | 30mA @ 5V | 30mA |
| Current - Quiescent (Max) | 7.8mA | 16.5mA | 7.8mA | 7mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 80dB PSRR | 80dB CMRR, 80dB PSRR | 80dB CMRR, 80dB PSRR | 80dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 3.5ns | 0.8ns | 3.5ns | 3.5ns |
| Hysteresis | 60mV | 60mV | 60mV | 60mV |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-5 |
