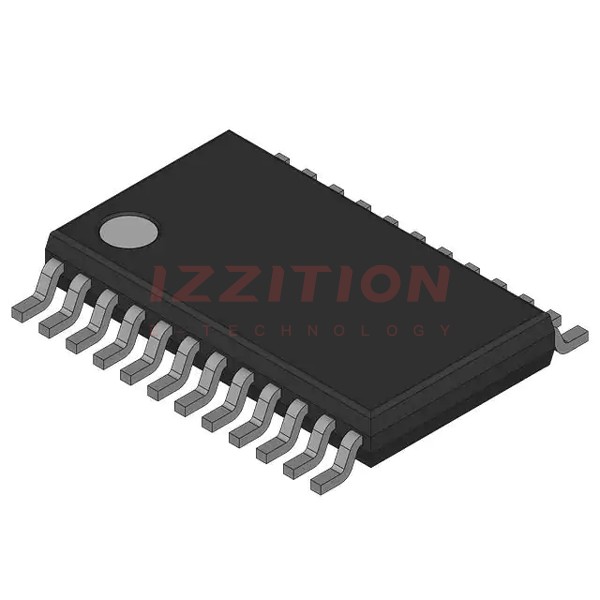

| Part Number | TLV1571CPW | TLV1571IPW | TLV1570CPW | TLV1571CDW |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Active | Active |
| Number of Bits | 10 | 10 | 10 | 10 |
| Sampling Rate (Per Second) | 1.25M | 1.25M | 1.25M | 1.25M |
| Number of Inputs | 1 | 1 | 8 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | SPI | Parallel |
| Configuration | MUX-ADC | MUX-ADC | MUX-ADC | MUX-ADC |
| Ratio - S/H:ADC | 0:1 | - | - | - |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR |
| Reference Type | External | External | External, Internal | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Features | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-TSSOP | 24-TSSOP | 20-TSSOP | 24-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
