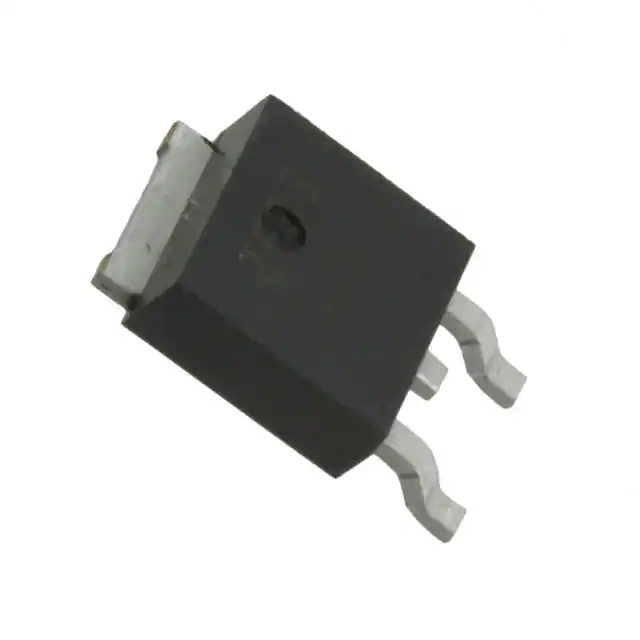

| Part Number | TLV1117IKTER | TLV1117IKTTR | TLV1117IKTPR | TLV1117CKTER |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 15V | 15V | 15V | 15V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 13.7V | 13.7V | 13.7V | 13.7V |
| Voltage Dropout (Max) | 1.3V @ 800mA | 1.3V @ 800mA | 1.3V @ 800mA | 1.3V @ 800mA |
| Current - Output | 800mA | 800mA | 800mA | 800mA |
| Current - Quiescent (Iq) | - | - | - | 10 mA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-4, DPak (3 Leads + Tab) | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-4, DPak (3 Leads + Tab) |
| Supplier Device Package | 3-PowerFLEX™ | DDPAK/TO-263-3 | TO-252-3 | 3-PowerFLEX™ |
