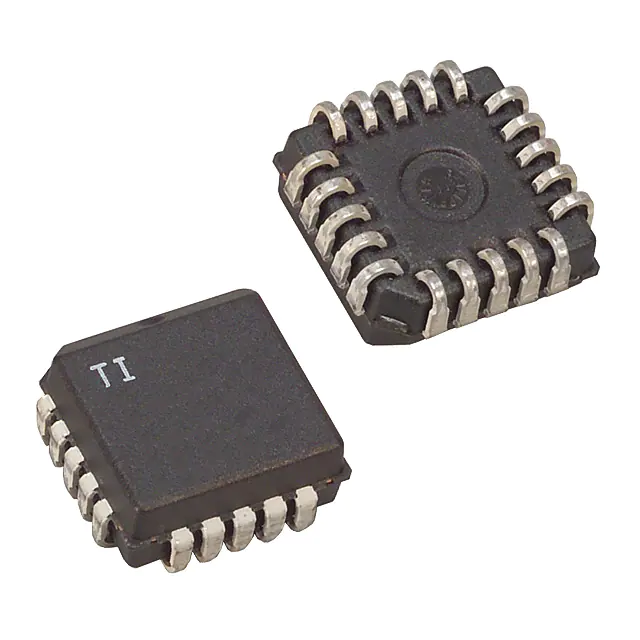

| Part Number | TLC7528IFNR | TLC7524IFNR | TLC7528CFNR | TLC7528IFN |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Active | Active |
| Number of Bits | 8 | 8 | 8 | 8 |
| Number of D/A Converters | 2 | 1 | 2 | 2 |
| Settling Time | 100ns | 100ns | 100ns | 100ns |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | Yes | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 5V, 14.5V ~ 15.5V | 5V ~ 15V | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V | 5V, 14.5V ~ 15.5V | 5V ~ 15V | 5V ~ 15V |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±2.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | 0°C ~ 70°C | -25°C ~ 85°C |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PLCC (9x9) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
